Navigating the Map

If the map area is larger than the area in the Map Display tab, you can drag the map to see hidden areas. Right-click anywhere on the map to zoom out a level or move the mouse scroll wheel backwards (toward you) to zoom out. Left-click to zoom in or move the scroll wheel away from you.

Mapping in Synergy is organized in a drill-down arrangement of maps for ease of navigation. Drilling down is not the same as zooming in; drilling down takes you to second map at a lower level.

Once you are zoomed in on an Overview Map, you can access a Second Level Map by left-clicking or moving the mouse scroll wheel away from you once again. You can zoom in on this map by left-clicking or moving the mouse scroll wheel forward. Repeat this process to access a Third Level Map. The following diagram illustrates this process.

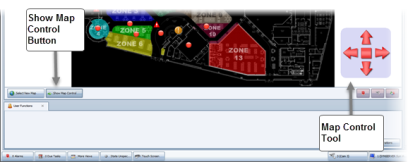

You can also navigate the map with the Map Control tool. Click the Show Map Control button on the lower left area of the Map Display tab. The Map Control tool appears on the map.

Click the red arrows to move up, down, right, or left on the map. If you click the square in the middle of the red arrows, you will move up to the higher level map.
