The Server Status Report

This report provides details on Synergy server performance, such as available memory, CPU and disk usage.

Rather than just showing the number when used in a bar chart, the statistics display a fixed percentage axis so you can tell how much is used (normally the axis grows and shrinks depending on the amount required).

You can also set the percentage thresholds so that you can make the bars go red or stay at green depending on the utilization by clicking Set Limits at the base of the table.

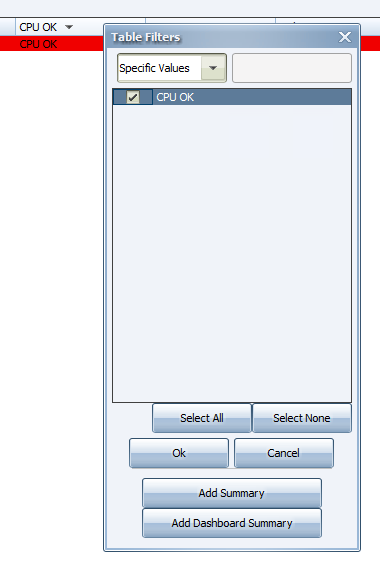

Synergy can use this information to create dashboards. To do this, right-click on one of the field label headers. A Table Filters dialog box will display.

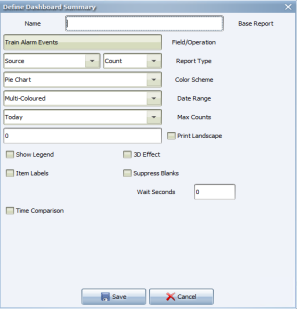

Click Add Dashboard Summary and enter the details that you want to be displayed on the dashboard. You will need to give it a suitable name and define how the statistics on the dashboard should be displayed, for example, as a pie chart.

Save your dashboard summary.

Go to Customize View and choose the layout, for example, a 4x4 grid, if you are displaying 4 sets of dashboard statistics.

Using the Function Search, you can now search for the dashboards you created and drag them into the grid.
