Interlace Settings

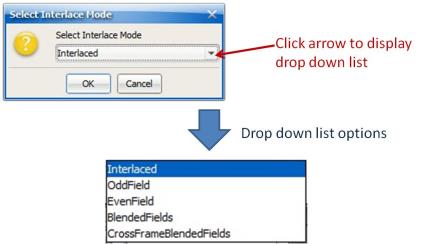

The Interlace Settings button opens the Select Interlace Mode dialog pictured below.

Click the arrow to display the drop down list and select the desired interlace mode.

The interlace mode you select will affect the quality of the displayed picture. For example if Interlaced mode is chosen, scenes with little or no motion will appear sharp. However scenes with high motion will show signs of motion blurring. In this case you should select one of the other modes.

Selecting OddField or EvenField will reduce the resolution but remove the blurring.

If you select BlendedFilelds or CrossFrameBlandedFilelds Synergy will mathematically blend the video fields in an attempt to retain the resolution and remove the blurring.
