Map Salvo
New Map Salvo
Use this option to create a salvo from a map. This will allow you to select cameras on the map and then save them into a salvo.
Note: The current user will only be able to create a map salvo if they have user group permission to do so. See your administrator for further details.

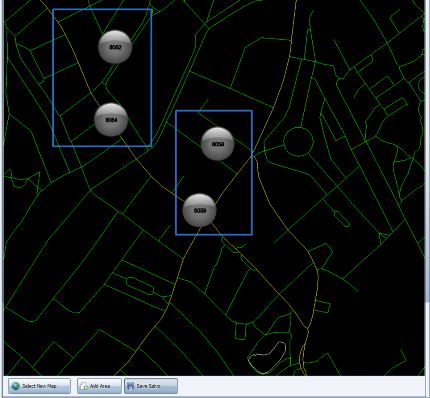

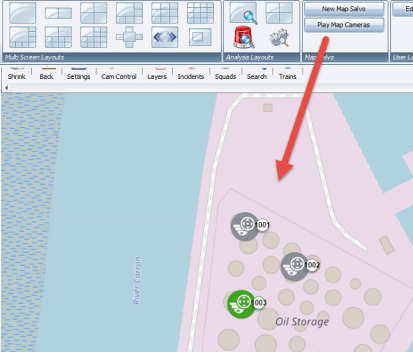

Click New Map Salvo and draw a rectangle on the map by clicking two points to select the area that contains the required cameras.
Once you have highlighted the area, click Save Salvo. You will be prompted to enter a name for your macro layout and an icon.
Play Map Cameras
To play video from cameras on a map in an intuitive video layout, click Play Map Cameras.

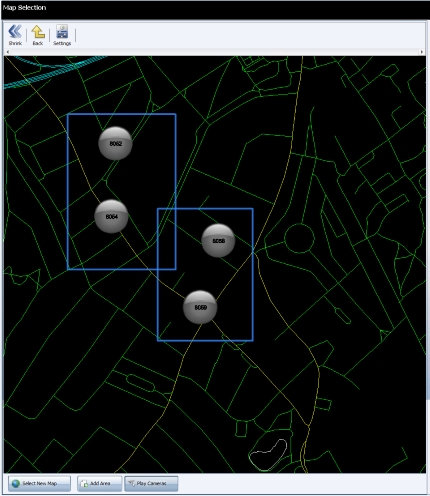

On the map, draw a rectangle by clicking two points to select the area from which cameras should be played. You can click Add Area to draw another rectangle in order to select more cameras. This also works with cameras that were auto-plotted on the map.
Click Play Cameras at the bottom of the screen to begin playback of video from the highlighted cameras. The video view will adapt to the number of cameras to be viewed.
