Playback Controls

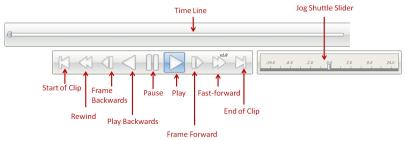

In Synergy you can easily control the play of your video via the controls pictured below or vie the respective controls on the floating tool bar displayed at the bottom of the video window.

You can use the video playback controls to navigate through the video recording as you like.

If the footage is already at the beginning, and you press the Start of Clip button the clip duration is shown which will select the footage before the currently retrieved clip.

If the current clip starts for example at 14:20 and you press the Start of Clip button twice, a new clip of the same camera from 14.10 starts if you have selected clip duration of 10 minutes.

Similarly, if the footage is at the end of the clip, you can select footage directly after the clip.

Clicking the Fast-Forward or Rewind buttons multiple times increases the speed of the fast-forward or rewind operation respectively. The speed increases in factors of x2, x4, x8, x12 and x24. The speed increase is indicated on each button. The button shows x1.0 for normal playback speed.

The Jog Shuttle Slider allows you to easily change speed and direction when browsing footage.

To move to a specific point in the video drag the marker on the Time Line to the desired time and then click the Play button.

You can also use the Time Line to scan through footage. Left click and drag the slider marker to scan through the footage. The footage plays back as the slider marker is dragged. When you release the marker, the clip is paused at the new position. Press the play button to start normal playback from this point.

By default the Time Line displays in minutes. You can change it to display in hours or days by right clicking on it and using the options on the context menu:
