Preset Manager

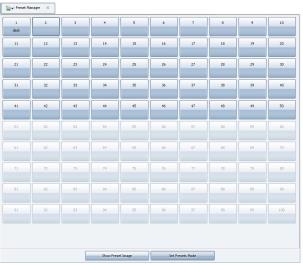

The Preset Manager tab is used to set presets. The Preset Manger can be found in the Device Selection group on the Configure View tab. To include it in a panel select the button and drag it to the panel.

Up to 100 presets can be set. To set a preset move the camera to the position you want to set it to.

Make sure the Set Presets Mode button is selected and then click the button to be associated with this position. The Enter Preset Details dialog is displayed:

The Camera Id is the number of the current camera and the Preset Id is the number of the preset you are setting.

Enter a Preset Name and Description and click Save. The Enter Preset Details dialog closes and the new preset is now available.

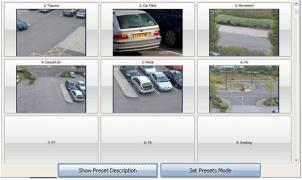

The Show Preset Images button changes the display so an image of the position for each preset is displayed. This can be very helpful if you need to recall where the preset positions are.

Click the Show Preset Description button to go back to a display with descriptions of the presets.
