System Tours

Synergy is designed to allow only one System tour to run over the entire system at a single time.

To start a System Tour, click the button. The System Tours dialog is launched.

The Select Tour drop down list contains all available system tours

Select a tour from the drop down list and select a monitor from the Monitor drop down list. Once you have done this the Start button will become enabled. Click Start to start the selected tour. It will be added to the Running Tours list as pictured below:

To stop a tour, select it in the Running Tours list and click the Stop button (it will become enabled).

To change a tour, select it in the Running Tours list and click the Change button (it will become enabled). A dialog allowing you to change the tour is launched.

Change System Tour

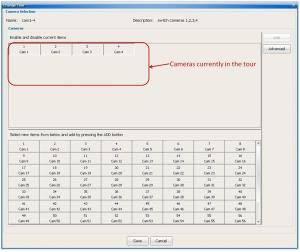

Pressing the Change button launches the following Change Tour dialog:

All cameras currently in the tour are displayed in the top panel. You can enable or disable them by selecting or deselecting the respective buttons.

You can add new cameras to the tour by selecting them in the bottom panel and then clicking the Add button.

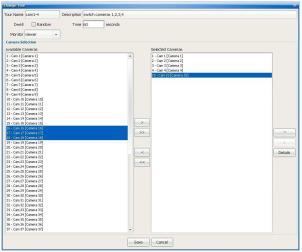

Clicking the Advanced button launches the following dialog:

All currently available cameras are listed in the Available Cameras list.

Use the button to add the selected camera(s) to the list of Selected Cameras (the cameras in the tour) or the button to add all cameras.

Use the buttons to move cameras from the list of selected cameras back to the list of

available ones.

You can arrange the order of the Selected Cameras by using the buttons.

Click Save to save your changes.

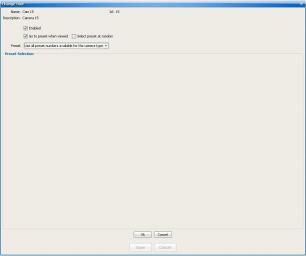

To view the details for a camera in the tour select it in the Selected Cameras list and then click the Details button. A dialog allowing you to set up preset choices for the camera is displayed:

The Preset Selection pane display depends on the selection from the Preset drop down list. It is empty as in the picture above when Use all preset numbers for the camera type is selected.

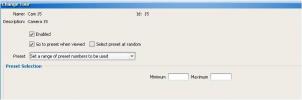

When Set a range of preset numbers to be used is selected you have the option to type in a Minimum and Maximum preset number.

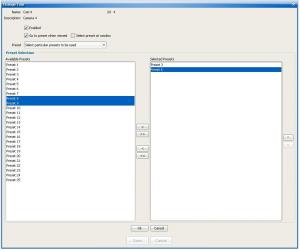

When Select particular presets to be used is selected it allows you to select any of the available presets.

When you are done with changes, click Ok to save them.
