The Current Alarm Events Report

To display this report, you will need to enable the setting currentAlarmEventsTableEnabled.

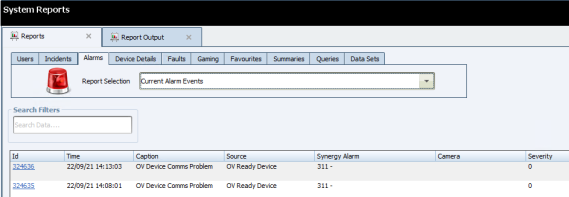

This report shows alarms in the current alarm stack.

Note: It does not automatically refresh.

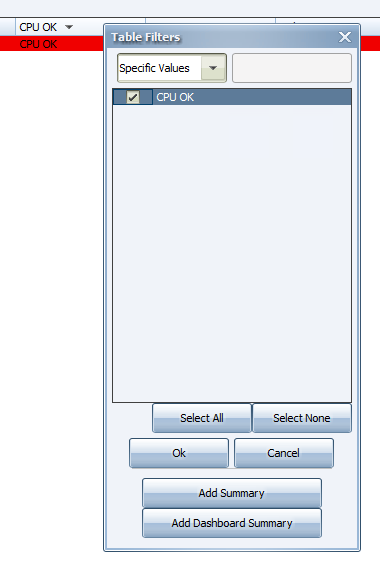

Synergy can use this information to create dashboards. To do this, right-click on one of the field label headers. A Table Filters dialog box will display.

Click Add Dashboard Summary and enter the details that you want to be displayed on the dashboard. You will need to give it a suitable name and define how the statistics on the dashboard should be displayed, for example, as a pie chart.

Save your dashboard summary.

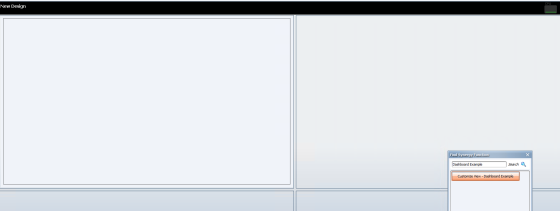

Go to Customize View and choose the layout, for example, a 4x4 grid, if you are displaying 4 sets of dashboard statistics.

Using the Function Search, you can now search for the dashboards you created and drag them into the grid.
