Viewing Data Summaries

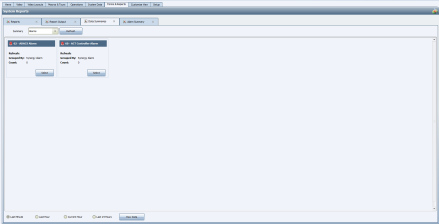

To view data summaries, go to Customize View -> Data Tables and click Data Summaries.

Note: You may wish to drag the Data Summaries button into your System Reports window and Save the view.

Select which summary you wish to view from the pull-down list.

You can filter the report by selecting the following options.

Last Minute. This will show any alarms within the last sixty seconds.

Last Hour. This will show any alarms within the last sixty minutes.

Current Hour This will show any alarms that have triggered within the current hour, for example, from 13:00:00 to 14:59:59. The next “hour” would start at 14:00:00.

Last 24 Hours. This will show any events within the last 24 hours.

Click Refresh to produce the data summary.

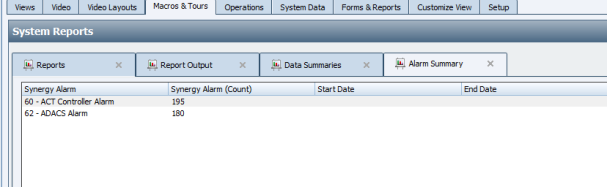

To see the underlying data for this summary, click Raw Data.
