The Monitors Tree

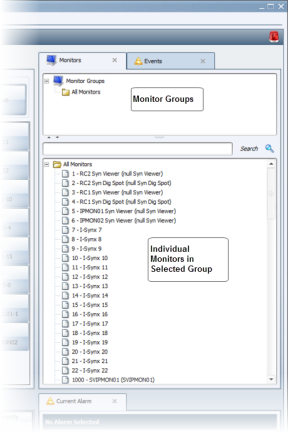

Another way to select a monitor is by selecting it from the Monitor Tree. Drag the Monitor Tree button from the Device Selection group on the Customize View menu and drop it to a panel in your view.

Select a folder from the Monitor Groups list in the upper panel of the tab. The name and number of the monitors in your selected group appear in the lower panel of the tab in a tree structure.

Click the monitor on the tree that you want to select. Video from your selected camera appears on this monitor, and the monitor number appears on the Monitor button on the Task Bar.

If you know a monitor's name, number, or description, but not its group name, you can search for it. Enter the name, number, or description of the monitor in the Search window and click Search. All monitors that begin with the text you entered appear on the Monitor Tree.
