Select IP Monitor Output

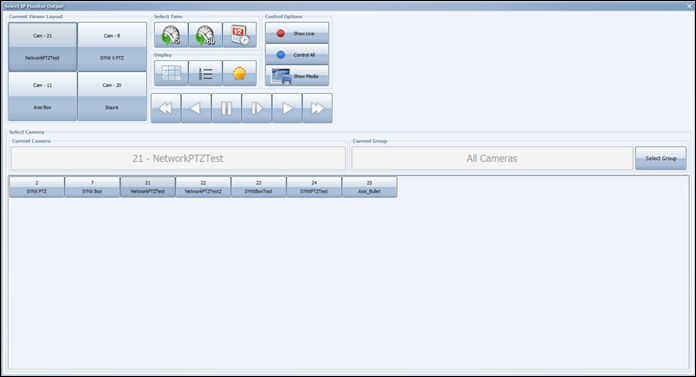

To set up and control the Display Wall, click the <INSERT INFO>. The Select IP Monitor Outputdialog.. appears.
CHECK SCREENSHOT
The Current Viewer Layout pane shows your selected layout.
Changing the Layout

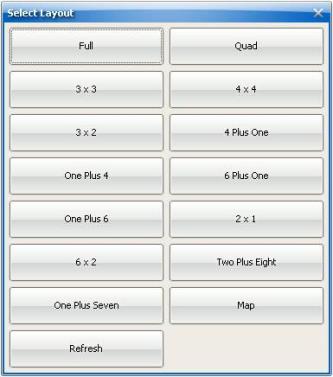

You can change the layout by clicking the Layouts button. The Select Layout dialog appears.
Make your selection. The Current Viewer Layout pane is updated to represent the new layout.
Selecting Cameras
To assign a camera to a window in the layout, select the window and then select a camera from the Select Camera pane. To select a different group of cameras, click the Select Group button.
On Screen Display
You can display the date, time, and camera name on each window on the Display Wall. To configure the on screen display, click the Setup OSD button. The Configure On Screen Display dialog appears.
Select the color, font, and font size and click Ok. Your selections are applied to the display.
If you do not want any on screen display, click the Disable All Osd button.
Playing Recorded Video
You can switch to playing recorded video for the display selected.
To play the last 5 or last 60 minutes of recorded video, click the respective button.

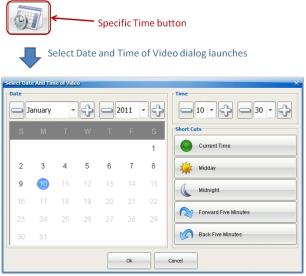

To select a video for any day and time, click the Specific Time button.The Select Date and Time of Video dialog appears.
The current date is indicated in blue, and the dates within the footage retention period are highlighted.
Select the start time for the video (it must be within the retention period). You can also use the Short Cuts buttons to select certain times.
Click Ok.
The video playback will begin in the selected window.
The following screenshot shows the video controls you use to navigate footage.
To return to live viewing, click the Live button
Note: You can control the video playback for all screens in the layout by clicking the Control All button .
Display Synergy Statistics on the Display Wall
You have the option to display Synergy statistics regarding alarms and incident on the Display Wall.

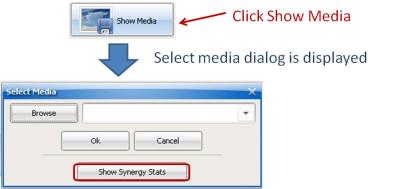

Select the window in the layout where you want the statistics displayed. Click the Show Media button. The Select Media dialog appears.
Click the Show Synergy Stats button. The statistics appear in your selected window.

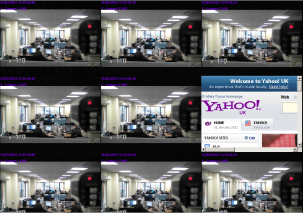

Displaying Web Pages on the Display Wall
You have the option to display Web pages on the Display Wall
Select the window in the layout where you want the Web page displayed. Click the Show Media button. The Select Media dialog appears.
Using the Browse button, select <ADD INFO>
The Web page is displayed in t he selected window of the Display Wall.
