The Cam Snapshots Tab

This tab shows thumbnail images of selected cameras at selected dates and times. The thumbnails include the camera ID and name and the date and time the image was recorded. If there are no snapshots, Synergy will automatically create a reference image. You also have the option to update your reference images to these images.

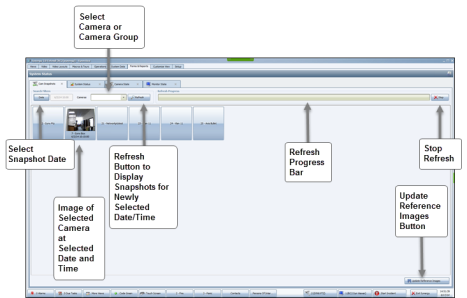

Click the Cam Snapshots tab on the System Status screen.

To select the date that you want snapshots displayed, click the Date button. The Select Date dialog appears.

Select the date and time to take snapshots and click OK.

Select the camera or camera group from the Camera drop-down menu. You can also click the Camera button on the Task Bar at the bottom of the Primary Window. The Camera buttons appear and you can select a different camera.

Click Refresh. The progress of the refresh process is displayed in the Refresh Progress bar.

If you want your reference images to match the newly selected snapshots for the selected cameras, click the Update Reference Images button.
