The Recording Event Summary Report

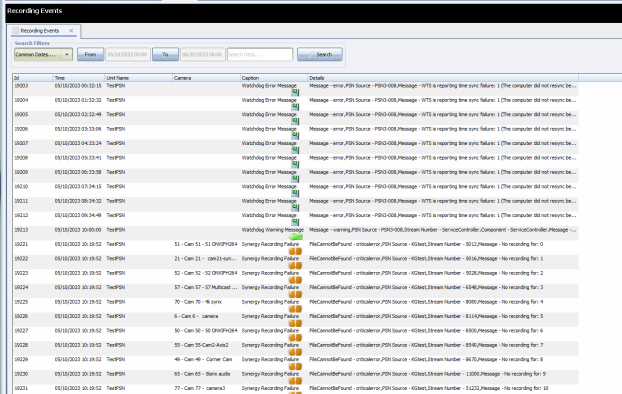

The Recording Event Summary report provides a table showing the main details about recording events on your PSNs. By default, the table opens to show all recording events on all PSNs for the last thirty days. The following screenshot shows the columns included in the table.

As well as being listed in the Forms&Reports section, it is also available under System Data -> Recording Events.

You can report on the recording events on a specific PSN by selecting it from the Select DVR drop-down menu.

You can also filter by camera(s) within PSNs. This displays the number of occurrences of each event type per camera. There is a hyperlink available on the camera ID which when clicked will allow you to play back the video for a particular camera and time.

To aid in identifying problem units, you can drill down further by double-clicking a particular element. For example, when all PSNs are displayed, double-clicking a single PSN displays each recording event type; when a single PSN is displayed, double-clicking the PSN displays all cameras associated with that PSN, arranged by recording event type.

Use the Search Filters to define the time period or related data for which you want to generate a Recording Event Summary report. You can also filter the data by selecting column-level values. For details on filtering reports with column-level values, see Filtering Reports on page 1.

To generate a report, when the data that you want is displayed, select an output format and click the Save Data As button at the bottom of the Reports tab.

To display an icon alongside the alarm, as shown in this example, you will need to add the client configuration setting: <recordingEventsWithIcon>true</recordingEventsWithIcon>. This can only be displayed from the System Data view.
