The Display Walls Tab

The Display Walls tab displays buttons corresponding to all available display walls set up in your system.

You can select a display wall by clicking its button or by clicking the Select Group button. The Select Group of Display Walls dialog appears.

Click the button for the group you want to view. The Display Wall tab is populated with buttons corresponding to the display walls in your selected group.

Click the button for the display wall that you want to see. The Select IP Monitor Output dialog appears. On this screen, you set up and control your display walls.

You can control and change settings for each of the walls as well as for the video windows in each of the walls in the layout. To select the window you want to operate, click the layout button in the Display group.

The Select Layout dialog appears.

Click the button for the layout you want. This layout appears in the Current Viewer Layout area of the screen.

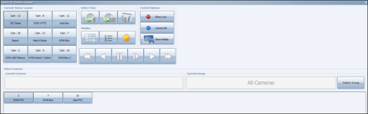

You can now play recorded video in the layout you selected. Use the time controls pictured below to select the timeframe for the video.

Select a window in the on-screen layout The video playback will start in this window or in all windows if you click the Control All button. Use the video playback controls to navigate through the video recording, as you like.

To return to live viewing, click the Show Live button.

The Multiple Layout Display functionality is available in the CONTROL and above license tiers.
