The Map Tree Tab

The Map Tree tab displays an overview of the maps configured in your system, while also showing the camera and alarm icons on each map. Click the Map Tree button in the Mapping group on the Customize View tab and drag and drop it to a panel in the Primary Window.

You can click each node to expand the tree to see lower-level maps and associated cameras and alarms. To select a camera, click it in the tree; its live video appears in the Video Window and the camera number and name appear on the camera button on the Task Bar.

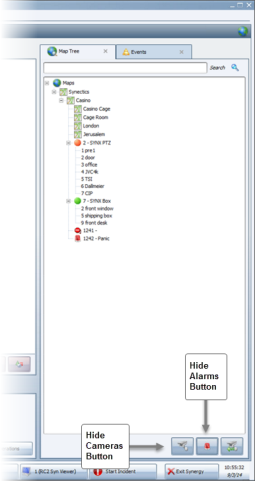

To best see the map hierarchy, hide the camera and alarm icons by clicking the Hide Cameras and Hide Alarms buttons in the lower right corner of the tab.

If you hover over a camera icon with your mouse, a tool-tip appears with the camera name, camera number, and other information about the camera. A thumbnail of the camera's view also appears.
